The Revit-BloomCE integration plugin is installed during the CloudEngine install and setup.The BloomCE connector plugin is available from the Add-ins tool bar.

Coordination with Revit

For more information regarding the coordination of Reality Capture data and Revit, see Cordinate Systems -> Working with Revit.

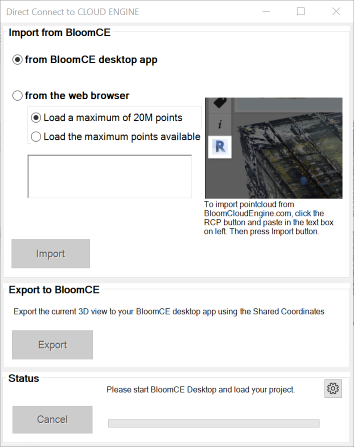

Options

Import and export data from running session of BloomCE desktop. Only the visible data in either applications is exchanged through this interface.


Import

Import visible data from BloomCE

  • Geometry and Annotation: Imports all 2D lines, points, markers and planes.
  • Point Cloud: Imports all visible points in the current color using RCP format. The RCP files are located in BloomCE project's asset folder.


After import, close the optionbox and use Zoom Extents to view the data in Autocad.

Export

Export current view from Revit

Versions supported

2020, 2021 2022, & 2023
